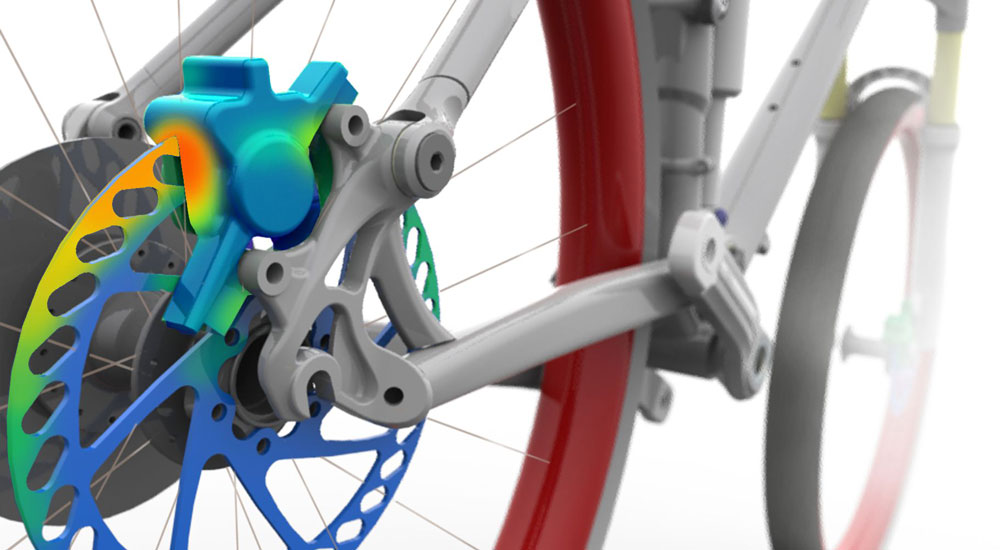

trek-bike-simulation-01

Simulation Premium

Evaluate your designs for nonlinear and dynamic response, dynamic loading, and composite materials.

Gain valuable insights to improve product reliability in the most cost effective manner, no matter the material or environment.

Simulation Features:

Analysis Features:

Composites Components

Plastic Deformation and Residual Stresses

Frequency

Vibration

Drop Test

Structural

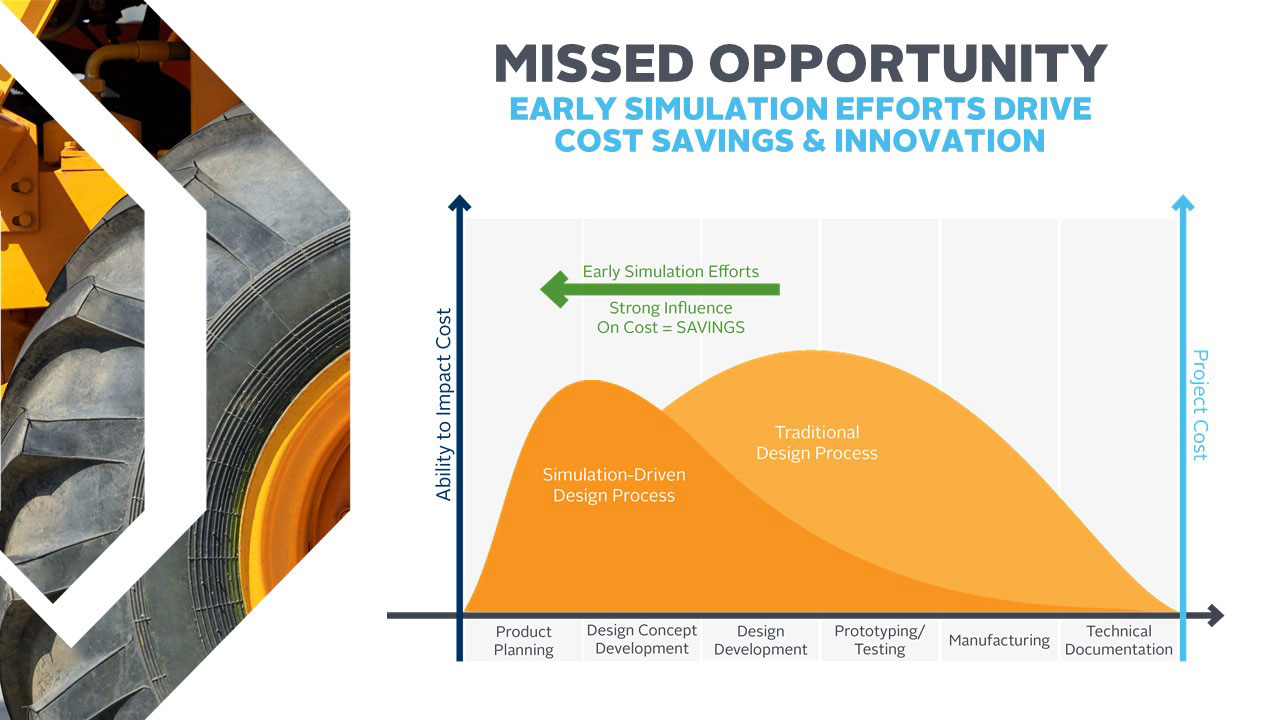

Simulation Graph
simulation professional

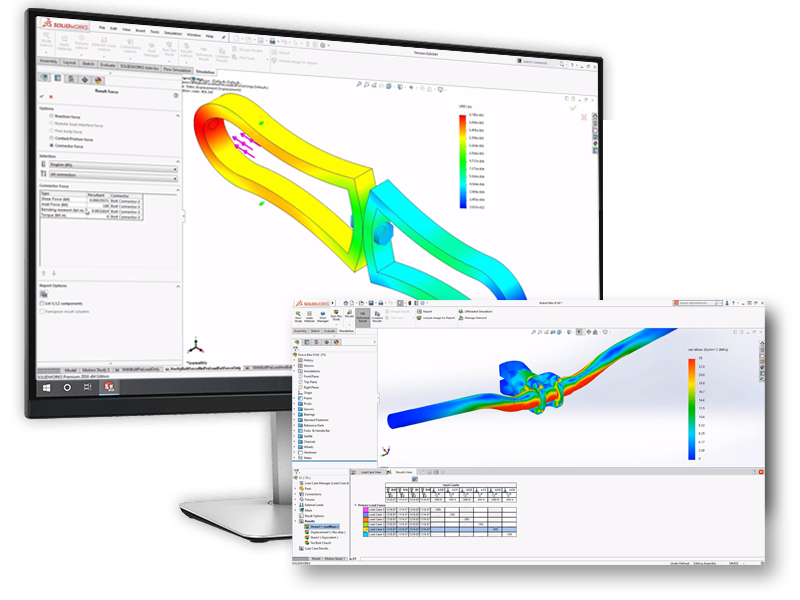

Simulation Professional

Determine product mechanical resistance, durability, and natural frequencies. Test heat transfer and buckling instabilities. Conduct pressure vessel analysis and complex loading. Optimize products for weight, vibration, or instability based on a range of physical and geometrical parameters.

Study Types:

Design

Structural

Frequency Analysis

Event-Based Motion

Pressure Vessel Design

Drop Test

Vibration

Fatigue

Challenge:

Prototype deficiencies caused product failures in the field.

Solution:

Used SOLIDWORKS Simulation to determine optimal geometry using convergence testing.

Outcome:

Reduced design time from weeks to days, increasing innovation for new product development and overall speed to market.

simulation standard

Simulation Standard

Give your engineers the tools to know if their products will perform properly and how long they’ll last. The Trend Tracker capability and Design Insight plot enable designers to highlight optimal design changes while they work.

Features:

  • Design Comparison with Parametric Simulation: determine the best design option by comparing strengths, design life and weight
  • Time Based Mechanism Simulation
  • Fatigue Simulation: evaluate the consumed life of a design submitted to repeated loading

Event-Based Motion

Pressure Vessel Design

Drop Test

Accelerate your analysis process with SOLIDWORKS Simulation 2023

Experience faster contact problem solves through adjustable Contact Penalty Stiffness, allowing for accuracy and time optimization in initial studies and multiple analyses. Enhancements also include increased flexibility in bonded contacts, enabling bonding of non-touching faces at extreme angles. Additionally, Simulation Professional and Premium offer hyper-realistic Underconstrained Body feedback and extension of the linkage rod connector into nonlinear static and dynamic studies.
